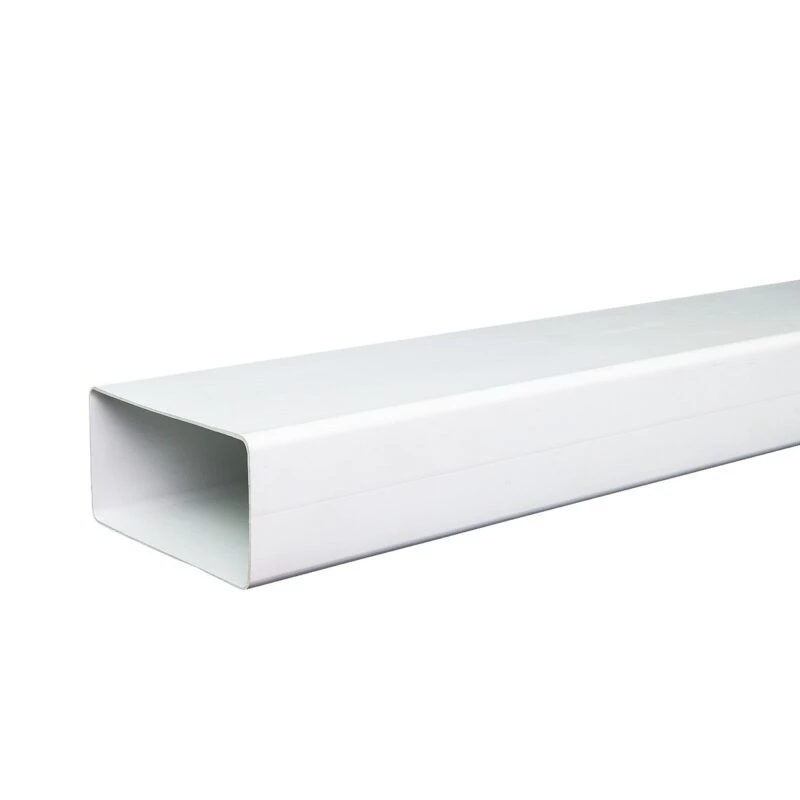

Flat channel DOMUS 20.4x6 cm /1 m code 510

Thanks to its modern design, the MULTIVENT system with a channel size of 204 × 60 mm is 75% more efficient than similar flat channel systems with dimensions of 110 × 56 mm. Therefore, using this system allows for the installation of a cheaper, lower power fan.

Flat channel DOMUS 20.4×6 cm /1 m | Advantages and benefits for the user

Multivent is the smallest flat channel system, making it ideal for use in setups where small and medium air flows are required, such as ventilation for kitchen rooms, bathrooms, WCs, or small public utility rooms. It is also suitable as a side branch from the main ventilation channels.

The MULTIVENT system is made of non-flammable plastic that meets international building standards.
It includes: elbows, connectors, reducers, non-return valves, brackets, wall collars, flexible ducts, and sealing tapes. Ventilation grilles, wall outlets, and anemostats connect to the system directly or through reducers.
It is lightweight and easy to connect (push-fit).
The channels can be cut with a hand saw.
It is corrosion-resistant, guaranteeing many years of use.

Working conditions:
flat channels: continuous air temperature max up to 65oC,
flexible PVC channels: continuous air temperature max up to 65oC,
flexible channels coated with polyester: short-term air temperature up to 100oC,
grilles and wall outlets: strong sunlight; atmospheric precipitation; air temperature from approx. -30oC to approx. +50oC.

All channels and fittings are made of the highest quality non-flammable plastics that meet DIN 4102/B1 standards. Grilles and wall outlets are also made from high-class imported plastics resistant to changing weather conditions and UV radiation, meaning they do not deform or discolor. These materials meet the requirements of the DIN 4102/B1 standard.

code 510
