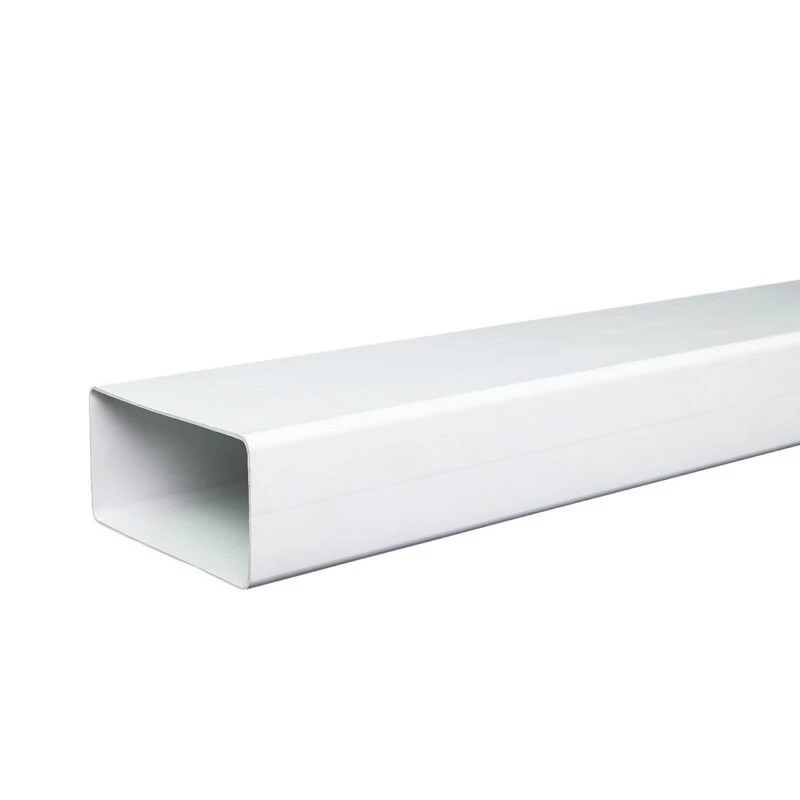

Flat duct DOMUS 20.4x6 cm /1.5 m code 515

Thanks to its modern design, the MULTIVENT system with a duct size of 204 × 60 mm is 75% more efficient than similar flat duct systems with dimensions of 110 × 56 mm. Thus, the use of this system allows for the installation of a cheaper fan with lower power.

Flat duct DOMUS 20.4×6 cm /1.5 m | Advantages and benefits for the user

Multivent is the smallest flat duct system, making it ideal for use in systems where small and medium air capacities are required, such as the ventilation of kitchen rooms, bathrooms, WC, or small public utility rooms. It is also suitable as a side branch from the main ventilation ducts.

The MULTIVENT system is made of non-flammable plastic that meets international building standards.
It includes: elbows, connectors, reducers, check valves, brackets, wall collars, flexible ducts, and sealing tapes. Ventilation grilles, wall outlets, and diffusers connect to the system directly or through reducers.
It is lightweight and easy to connect (push-fit).
Ducts can be cut with a hand hacksaw.
It does not corrode, ensuring many years of use.

Working conditions:
flat ducts: continuous operating air temperature max up to 65oC,
PVC flexible ducts: continuous operating air temperature max up to 65oC,
polyester-coated flexible ducts: short-term air temperature up to 100oC,
grilles and wall outlets: strong sunlight; atmospheric precipitation; air temperature from approx. -30oC to approx. +50oC.

All ducts and fittings are made of the highest quality non-flammable plastics that meet DIN 4102/B1 standards. Grilles and wall outlets are also made of high-quality imported plastics resistant to changing weather conditions and UV radiation, meaning they do not deform or discolor. These plastics meet the DIN 4102/B1 standard.

code 515
