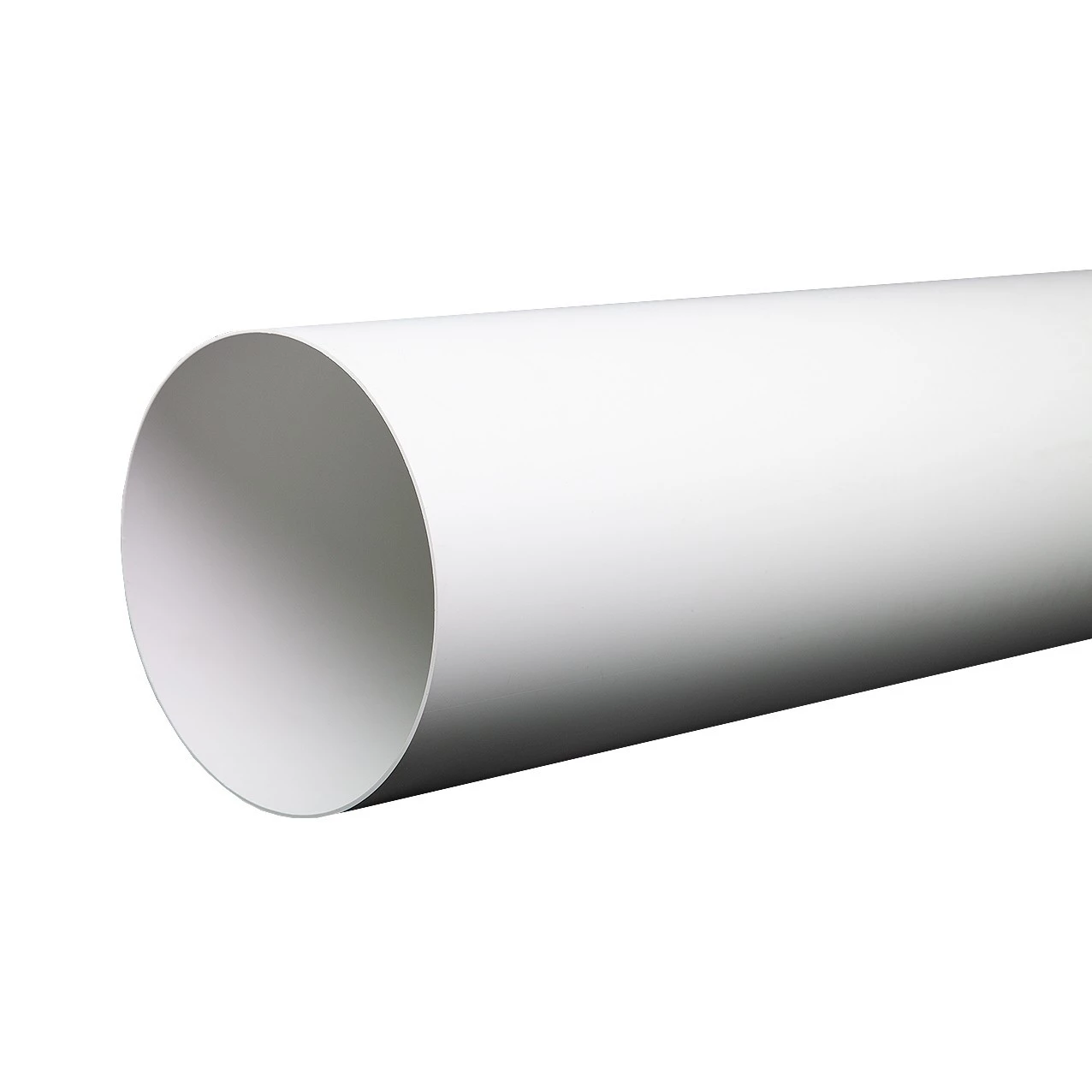

Round pipe DOMUS fi 15 cm/1 m 1100-6

Short description: DOMUS round pipe/1 m, available diameter: fi 15 cm. material: PVC, type of accessories for cooker hoods: ventilation.

EASIPIPE 100 System – round ducts offer the least air flow resistance and therefore are suitable for use in large buildings where long and complex duct runs occur and where there is sufficient space for their installation.

DOMUS round pipe fi 15 cm/1 m | Advantages and benefits for the user

EASIPIPE Model is made of non-flammable plastic that meets international building standards.

It includes: elbows, connectors, reducers, check valves, brackets, wall flanges, round and rectangular flexible ducts, and sealing tapes. Ventilation grilles, wall outlets, and anemostats connect to the system directly or through reducers.
It is lightweight and easy to connect together (push-fit).
Ducts can be cut using a hand metal saw.
It does not corrode, ensuring many years of use.

Operating conditions:

round ducts: air temperature in continuous operation max up to 65oC,
PVC flexible ducts: air temperature in continuous operation max up to 65oC,
polyester-coated flexible ducts: short-term air temperature up to 100oC,
grilles and wall outlets: strong sunlight; atmospheric precipitation; air temperature from approx. -30oC to approx. +50oC.

All ducts and flexible ducts are made of the highest quality non-flammable plastics (imp. BASF) that meet DIN 4102/B1 and UL 94 V2 standards. Ventilation grilles and wall outlets are also made of high-quality imported plastics resistant to changing weather conditions and UV radiation, meaning they do not deform or discolor. These materials meet the BS 493 standard.
