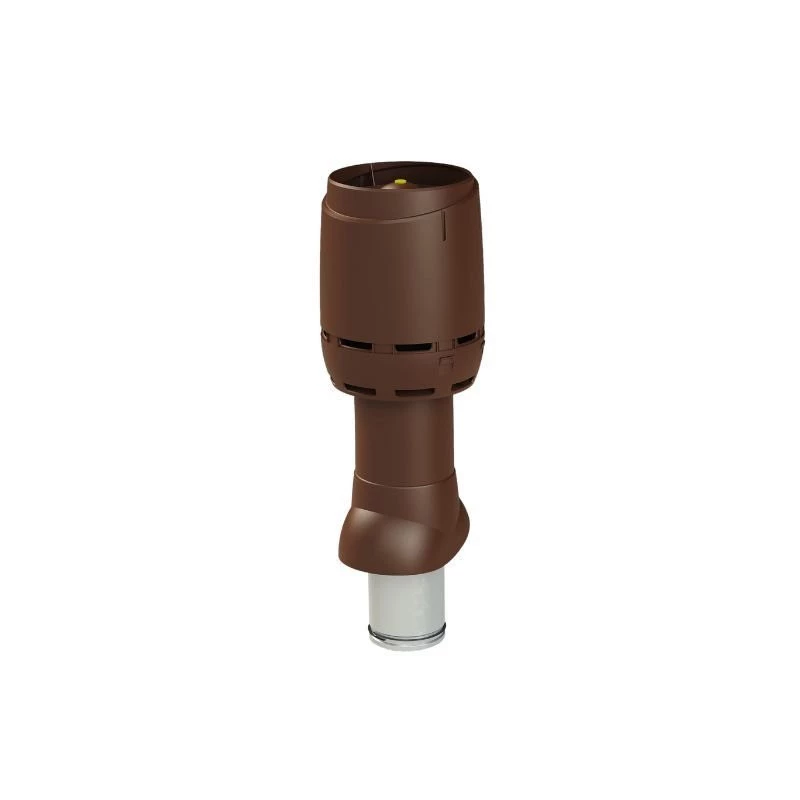

VILPE insulated ventilation chimney FLOW 125P/IS/500 CHOCOLATE

Short description: VILPE insulated ventilation chimney FLOW 125P/IS/500 CHOCOLATE. execution: galvanized sheet, polypropylene, type of cooker hood accessories: ventilation.

VILPE® has 40 years of experience in designing and manufacturing innovative ventilation solutions. All devices are designed to meet the demands of the toughest Scandinavian climatic conditions. They are certified to guarantee the highest quality and compliance with European requirements. Choosing VILPE® products is an investment for years. The products come with a 20-year technical warranty, including a 10-year color durability warranty.

Insulated ventilation chimney FLOW 125P/IS/500 CHOCOLATE

VILPE® ventilation chimneys and roof fans are pioneering products that have been on the market since the 1980s. It can be said that over the years they have become part of the Finnish landscape. We, at SK Tuote, take our position as industry pioneers seriously and consider it our duty to continuously strive to provide cleaner indoor air, better energy efficiency, and longer building structure lifespan. Now it's time for the next step, which is to improve ventilation products to meet the needs of the 21st century!

Advantages and benefits for the user

Functionalities:

• 40% LESS PRESSURE LOSS FLOW series products allow for up to 40% less pressure loss in ventilation ducts compared to standard products. This allows for significant energy consumption cost savings. For example, the FLOW Ventilation Chimney with a Ø160mm diameter achieves an efficiency of 360m3/h, with a pressure drop in the duct of 20Pa. A traditional Ø160mm chimney achieves the same efficiency with a pressure drop of 30Pa. The difference in the purchase price of the FLOW Chimney compared to a traditional chimney, thanks to the generated energy savings, pays off within 3 years.
• The result of intensive air flow research and improved FLOW product design, ensures vertical exhaust of used air. This design also prevents water from entering the ventilation duct.
• The unparalleled efficiency of FLOW products is the result of three years of intensive research and development. During this time, 30 versions of new products were created. The design process was carried out using advanced technologies, including the use of Linux supercomputers from the Finnish VTT institute. 13 prototypes were made using 3D printing technology, which were subjected to detailed testing.
• The VILPE® FLOW product series was created in collaboration with industrial designers. All roof fans, ventilation chimneys, and sanitary chimneys, in addition to improved design, will also feature a modern design.

Purpose:

• For exhaust of used air in gravity ventilation systems. Insulated with mineral wool ventilation duct. Dimensions: Internal Ø 125 mm, external Ø 160 mm, height 500 mm. Package contents: Ventilation chimney, FLOW head, and screws.

Materials:

• The inner duct is made of galvanized sheet, the outer of polypropylene.

Good to know!

• An appropriate roof transition is required to install the chimney.
