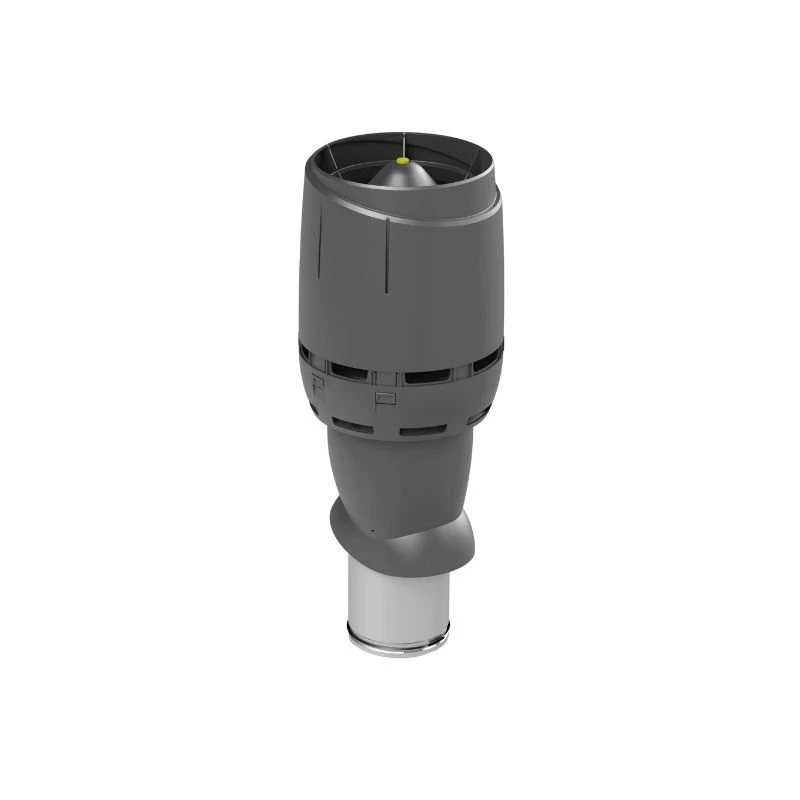

VILPE insulated ventilation chimney FLOW 160P/IS/500 ANTHRACITE

Short description: VILPE insulated ventilation chimney FLOW 160P/IS/500 ANTHRACITE. Material: galvanized sheet, polypropylene, type of accessories for cooker hoods: ventilation.

VILPE® has 40 years of experience in designing and manufacturing innovative ventilation solutions. All devices are designed to meet the demands of the toughest Scandinavian climate conditions. They are certified to guarantee the highest quality and compliance with European requirements. Choosing VILPE® products is an investment for years. The products come with a 20-year technical warranty, including a 10-year color durability warranty.

Insulated ventilation chimney FLOW 160/P/IS/500 ANTHRACITE

VILPE® ventilation chimneys and roof fans are pioneering products that have been on the market since the 1980s. It can be said that over the years they have become part of the Finnish landscape. At SK Tuote, we take our pioneering position in the industry seriously and consider it our duty to continuously strive to provide cleaner indoor air, better energy efficiency, and longer building lifespan. Now it's time for the next step, which is to refine ventilation products to meet the needs of the 21st century!

Benefits and advantages for the user

Functionalities:

• 40% LESS PRESSURE LOSS FLOW series products allow for up to 40% less pressure loss in ventilation ducts compared to standard products. This allows for significant energy cost savings. For example; The FLOW Ventilation Chimney with a Ø160mm achieves an efficiency of 360m3/h, with a pressure drop in the duct of 20Pa. A traditional Ø160 mm chimney achieves the same efficiency with a pressure drop of 30Pa. The price difference between the FLOW Chimney and a traditional chimney is recouped within 3 years due to the generated energy savings.
• The result of intensive air flow research and the improved design of FLOW products, ensures vertical exhaust of used air. This design also prevents water from entering the ventilation duct.
• The unmatched performance of FLOW products is the result of three years of intensive research and development work. During this time, 30 versions of new products were created. The design process was carried out using advanced technologies, including the use of Linux supercomputers from the Finnish institute VTT. 13 prototypes were made using 3D printing technology, which were subjected to detailed tests.
• The VILPE® FLOW product series was created in collaboration with industrial designers. All roof fans, ventilation chimneys, and sanitary chimneys, in addition to the improved design, will also feature a modern design.

Purpose:

• For the exhaust of used air in gravity ventilation systems. Insulated with mineral wool ventilation duct. Dimensions: Internal Ø 160 mm, external Ø 225 mm, height 500 mm. Package contents: Ventilation chimney, FLOW head, and screws.

Materials:

• The inner duct is made of galvanized sheet, the outer of polypropylene.

Good to know!

• A suitable roof transition is required to install the chimney.
