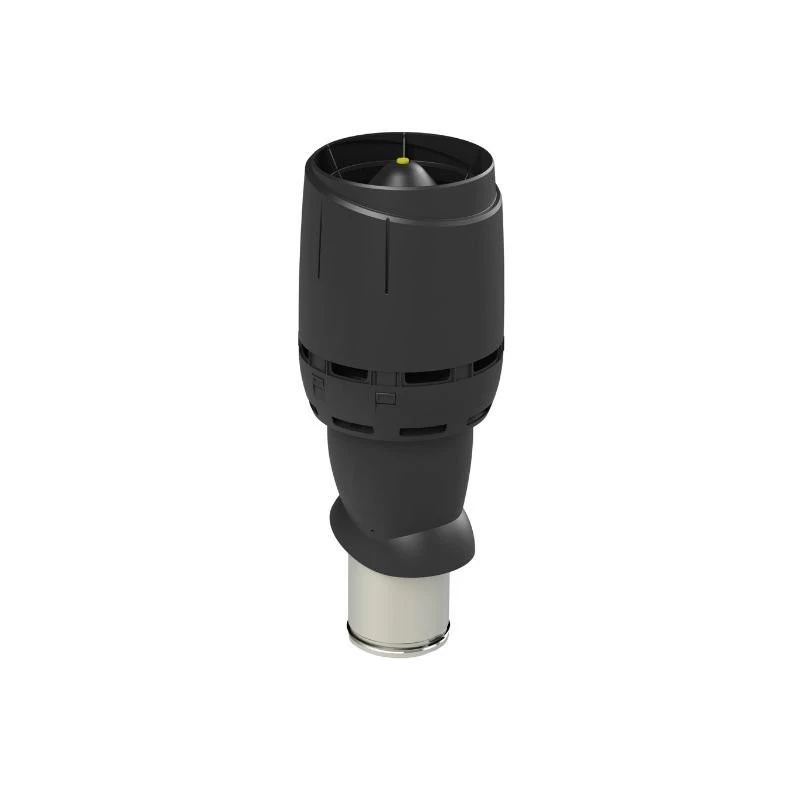

VILPE insulated ventilation chimney FLOW 160P/IS/500 BLACK

Cooker hood Kitchen faucet

Short description: VILPE insulated ventilation chimney FLOW 160P/IS/500 BLACK. Material: galvanized sheet, polypropylene, type of accessories for cooker hoods: ventilation.

VILPE® has 40 years of experience in designing and manufacturing innovative ventilation solutions. All devices are designed to meet the demands of the toughest Scandinavian climate conditions. They are certified to guarantee the highest quality and compliance with European requirements. Choosing VILPE® products is an investment for years. The products come with a 20-year technical warranty, including a 10-year color durability warranty.

Insulated ventilation chimney FLOW 160P/IS/500 BLACK

VILPE® ventilation chimneys and roof fans are pioneering products that have been on the market since the 1980s. It can be said that over the years they have become part of the Finnish landscape. We, at SK Tuote, take our position as industry pioneers seriously and consider it our duty to continually strive to ensure cleaner indoor air, better energy efficiency, and longer building life. Now it's time for the next step, which is to improve ventilation products to meet the needs of the 21st century!

Advantages and benefits for the user

Functionalities:

40% LESS PRESSURE LOSS FLOW series products allow for up to 40% less pressure loss in ventilation ducts compared to standard products. This allows for significant energy cost savings. For example, the FLOW Ventilation Chimney with a Ø160mm diameter achieves an efficiency of 360m3/h with a duct pressure drop of 20Pa. A traditional Ø160 mm chimney achieves the same efficiency with a pressure drop of 30Pa. The price difference between the FLOW Chimney and a traditional chimney is recouped within 3 years due to energy savings.
The result of intensive air flow research and improved FLOW product design ensures vertical discharge of used air. This design also prevents water from entering the ventilation duct.
The unparalleled performance of FLOW products is the result of three years of intensive research and development. During this time, 30 versions of new products were created. The design process was carried out using advanced technologies, including the use of Linux supercomputers from the Finnish VTT institute. Thirteen prototypes were made using 3D printing technology and subjected to detailed testing.
The VILPE® FLOW product series was created in collaboration with industrial designers. In addition to improved design, all roof fans, ventilation chimneys, and sanitary chimneys will also feature modern design.

Purpose:

For the discharge of used air in gravitational ventilation systems. Insulated with mineral wool ventilation duct. Dimensions: Internal Ø 160 mm, external Ø 225 mm, height 500 mm. Package contents: Ventilation chimney, FLOW head, and screws.
